We are the leading manufacturers and exporters of single sided rotary tablet press. Enriched with years of experience in offering innovative pharmaceutical machineries, we are offering our clients a complete and high quality range of Single Rotary Tablet Machine. Since inception, we strive to ensure quality deliverables within time.

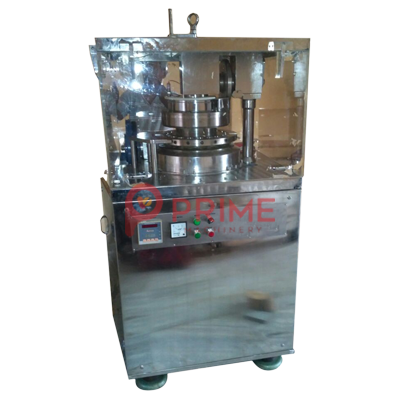

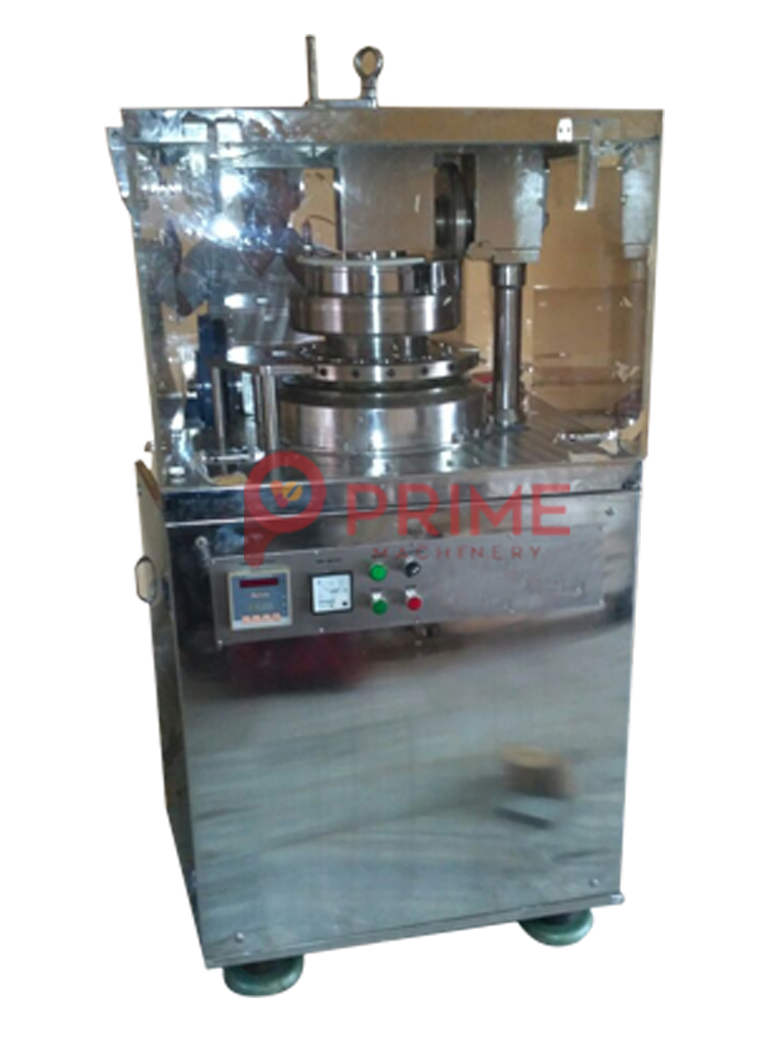

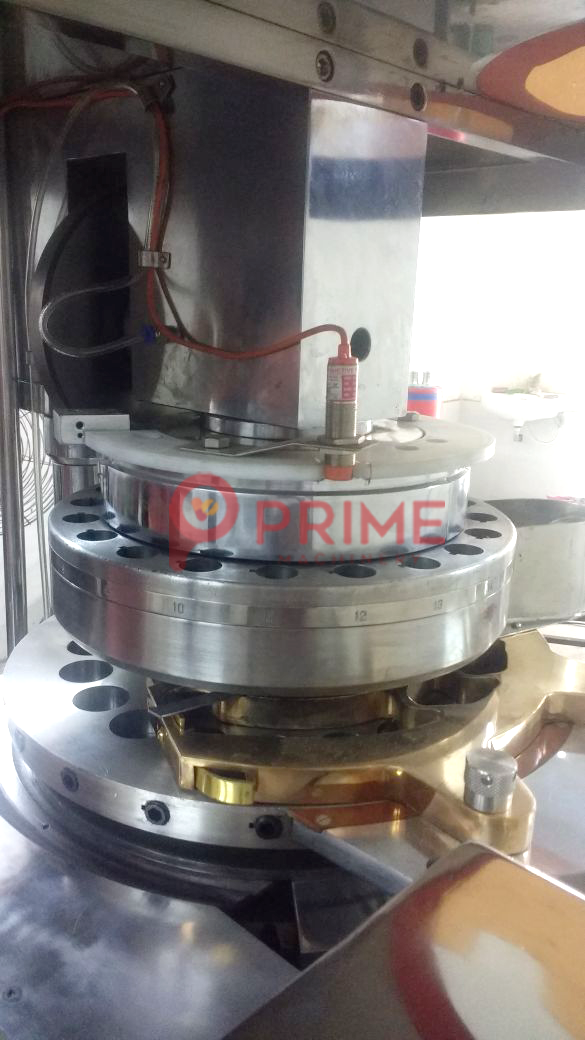

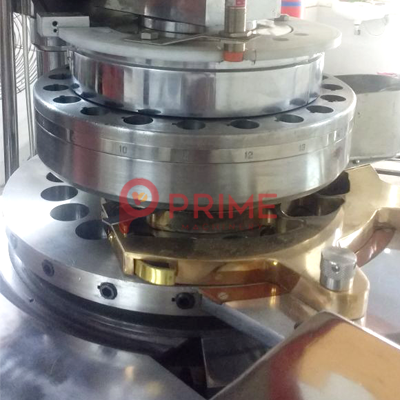

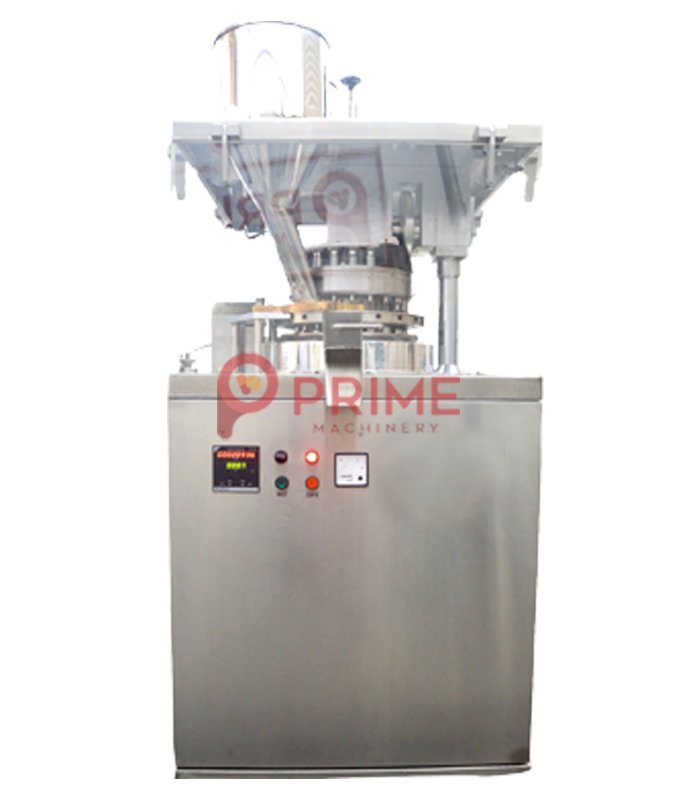

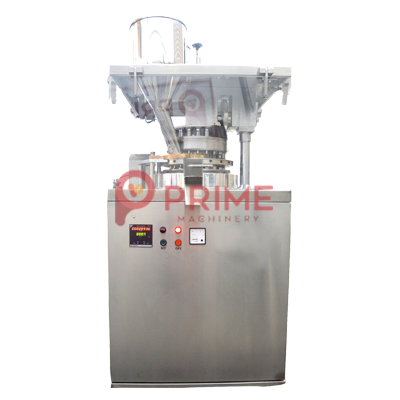

Prime Single Sided Rotary Tablet Press is a revolutionary product from the house of Prime Machinery which is widely used for the production of simple and precise tablets from powder. Highly used in pharmaceutical and relevant Industries, our single sided rotary tablet press is designed for easy use and low maintenance. Quick change over and volume adjustment features help produce tablets of different sizes and shapes. The body of the machine is built using SS 304 and contact parts with SS16 giving it extra strength and thus ensuring durability.
Prime Machinery is a forerunner in the pharmaceutical industry. Rigid design, precise and simple tablet compression are some of the salient features of our high quality machines. Precisely engineered by our experienced professionals and supporting a high performance, our Single Sided Rotary Tablet Press has been designed in accordance with international quality standards. Owing to longer service life, energy efficient power consumption and excellent performance, our machines are highly acclaimed by the customers.
Description
| Machine Type | 16D | 20D | 26B |
|---|---|---|---|
| Type of Tooling | D | D | B |
| Number of Stations | 16 | 20 | 26 |
| Output‐ Tablets/Hr | 13500 - 38400 | 17000 - 48000 | 23400 - 62400 |
| Turret RPM (Max) | 40 RPM | 40 RPM | 40 RPM |
| Max. Operating Pressure | 100 KN | 100 KN | 60 KN |
| Max. Tablet Diameter | 25 mm. | 25 mm. | 16 mm. |
| Max. Depth of Fill | 20.5 mm. | 20.5 mm. | 17.5 mm |
| Upper Punch Penetration | 1.5 to 8 mm. | 1.5 to 8 mm. | 1.5 to 8 mm. |
| Diameter of Die(mm.) | 38.1 | 38.1 | 30.15 |
| Diameter of Punch(mm.) | 25.34 | 25.34 | 18.99 |
| Length of Punch(mm.) | 133.6 | 133.6 | 133.6 |
| Power | 3.0 H.P. x 1440 RPM x 3 Phase x 415 Volts | ||
| Overall Dimensions(mm.) | 980 x 1020 x 1820 | ||
| Net Weight (Kgs.) | 1150 | ||
Output depends on material *
